| Place of Origin: | Guangdong China |
|---|---|
| Brand Name: | K&C |
| Certification: | ROHS |
| Model Number: | KN10 |
| Minimum Order Quantity: | 100meters |
| Price: | $1~$20 |
| Packaging Details: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Delivery Time: | 3-10 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 100Tons/Month |
| Finished Color: | Silver/Black/White | Length: | Standard 2m, 2.5m Or Max.6m On Request |
|---|---|---|---|
| Indstallation: | Hoisting | Material: | 6063 T5 Aluminum Alloy |
| Diffuser: | Opal/Frosted/Clear | Process: | Extrusion |
| Shape: | Round | Packing: | PE Bag + Carton / Customized Package |
| Highlight: | φ120 led strip aluminium casing,φ120 Hoisting led strip aluminium casing,K&C led strip aluminium casing |
||

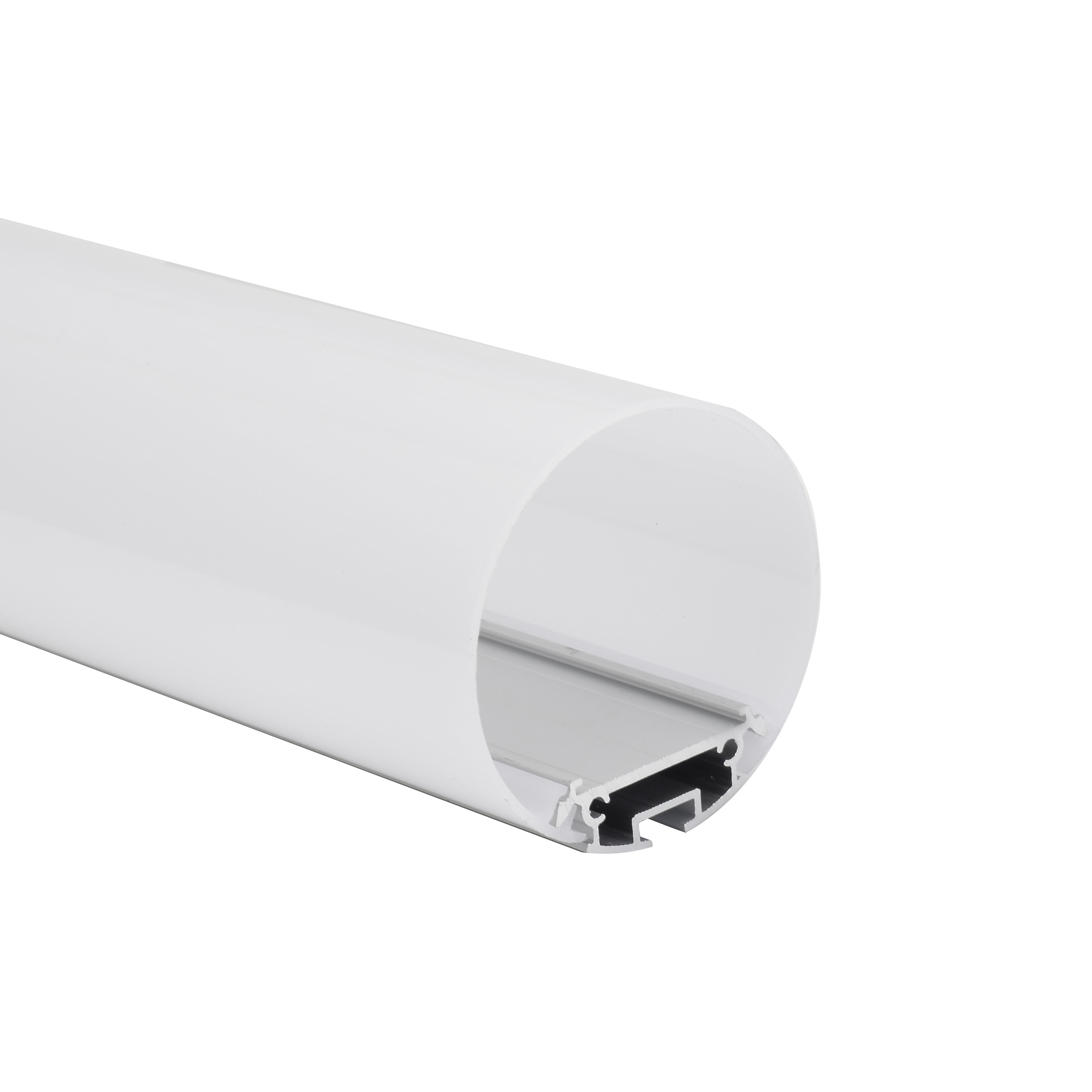

Round LED Profile φ120 Home Using Residential Building Decorations Lighting
Hoisting anodized Flat LED Strip Aluminium Profile which is dedicated for standard led stripe light up to 50mm width. The profile is performing as the heat sink to the LED strip and appears as nice, stylish housing for the LED strip. We propose to our customers three different diffusers: opal, frosted and transparent. We also offer several different accessories such as mounting clips, hanging wire system and end caps which make it look professional and nice.
Application
- Backlight&Supplementary Lighting
- Kitchen cabinets LED Lighting
- Furniture LED Lighting
- Home using residential building decorations lighting
- Exhibition booth LED lighting
Assembly
- Mounted to the ceilling with appropriate hanging wire system
Additional information
- The LED profile is suitable for bending into gentle arches, in the plane adjacent to the LED strip
- Can be equipped with transparent and frosted covers
- Space for LED strip up to 5mm width
Main Specifications
| Model No.: | KN10 |
| Item Type: | Round LED Profile |
| Dimensions: | φ60 |
| Standard length: | 2.5m/pcs |
| Customized-length: | Available on request |
| Suitable for led strip: | PCB width up to 50mm |
| Material: | 6063 T5 Aluminum Alloy |
| Treatment: |
Sandblasting oxidation |
| Finished color: | Silver/Black/white |
| Diffuser material: | PC |
| Diffuser finished: | Opal/Frosted/Clear |

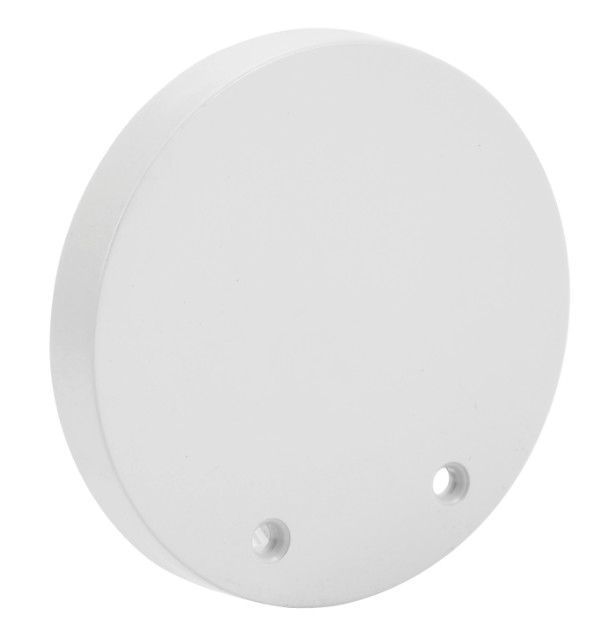

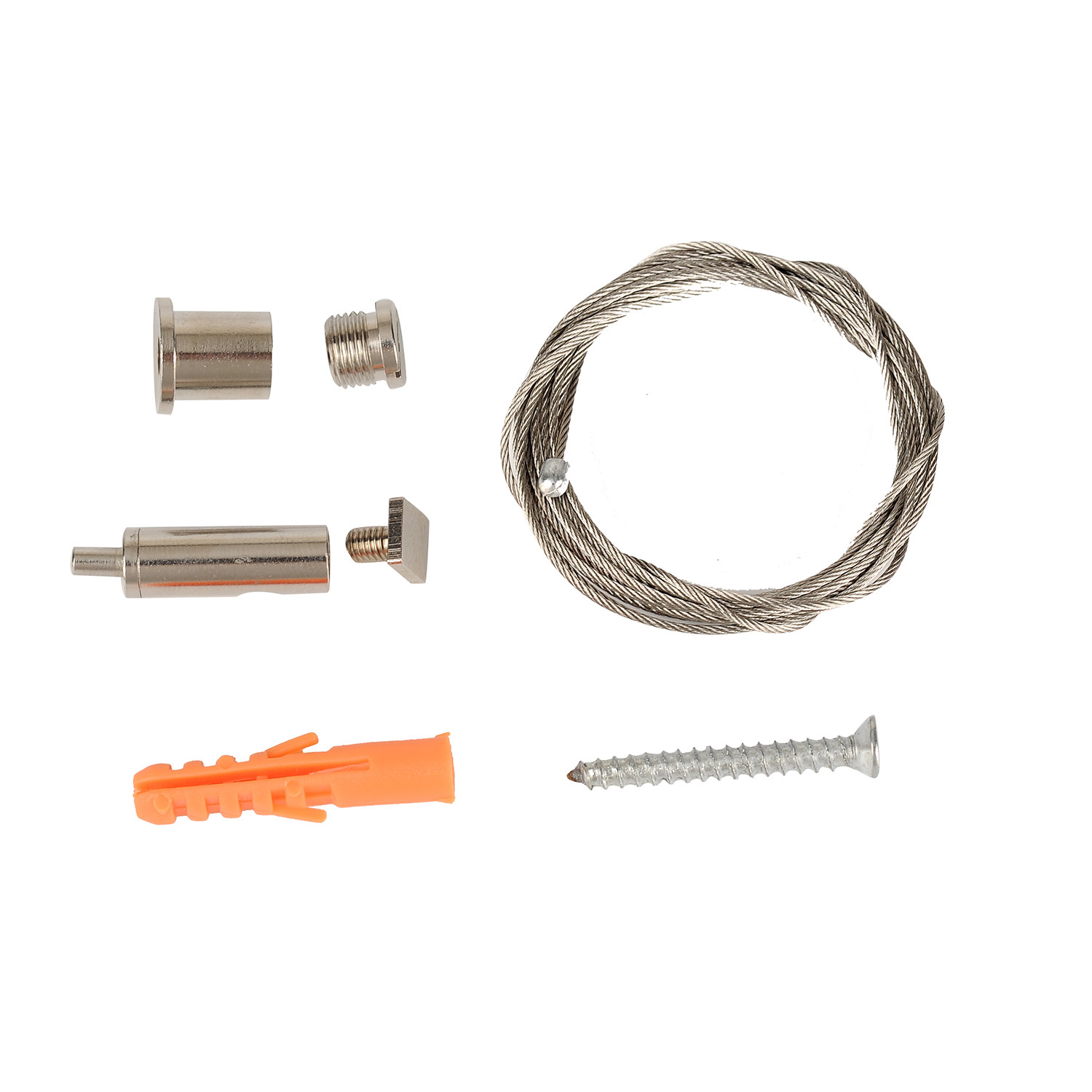

| Accessories: | PC Cover,End caps, clips ,hanging wire system |
| Installation: | Hoisting |
| Standard Package: | Inner Clear PE bag+EPE FOAM+Carton Box |
| Customized Package: | Available on request |
| Handling time | Samples within 1-3 working days Batch order 3-15 working days upon stocks |
| Shipment | By sea, by air, by express for option |

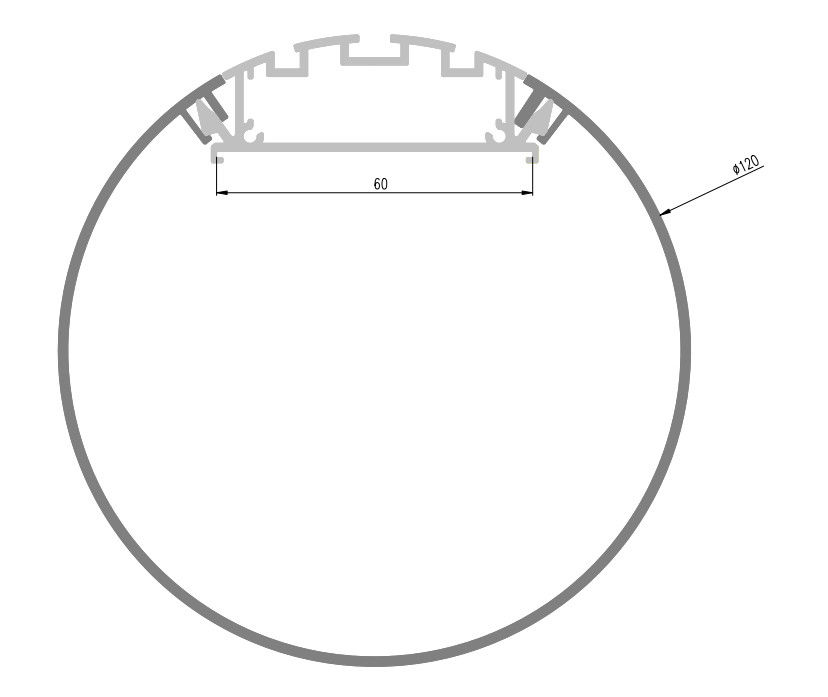

Drawing:
Installation
Application
FAQ:
Q: Are you a factory or trading company?
A: We're a self -own factory, and can provide a one-stop service for all of our customers, from material to various surface treatments, from technical sales to shipping and after-sales. So as to save the cost for clients, control the quality and lead time, provide the best services.
Q: Do you accept OEM and ODM?
A: Yes, we have our own mold shop and rich experience in OEM and ODM services.
Q: Can print LOGO on led profiles or OEM Packing?
A: Yes, could laser print on led profile/PC Cover. customized packing is available based on order quantity.
Q: How do you pack the goods? A: Normal profiles, diffusers, accessories are individually packaged and can be individually packaged upon request.
Q: What is your delivery time?
A: Most products have stocks. Samples within 3 working days, batch order 3-15 working days upon stocks.
Q: How do you ship the goods and how long?
A: Usually by international express delivery such as DHL, UPS, FedEx, TNT (3-7 working days), by air or by sea.
